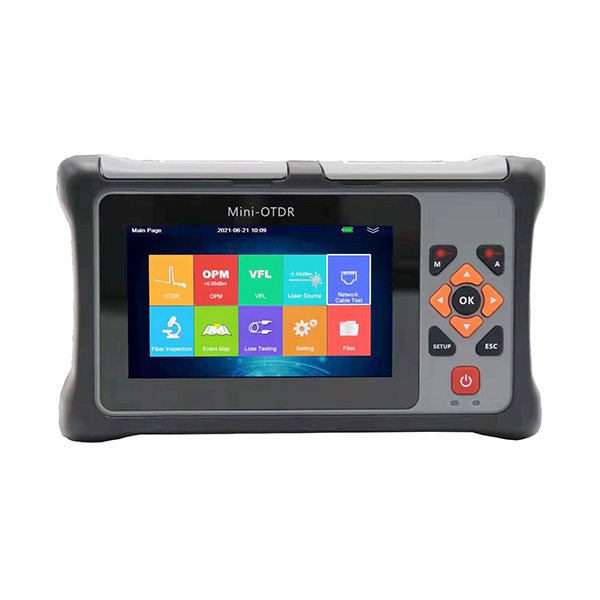

INF420 Multi-mode Mini OTDR
INF420 Multi-mode Mini OTDR integrates fiber cable and Ethernet cable testing in one unit. It is a powerful tester for installers of fiber cable and network cable.
Features:
- Support screen capture
- Integrated design, smart and rugged

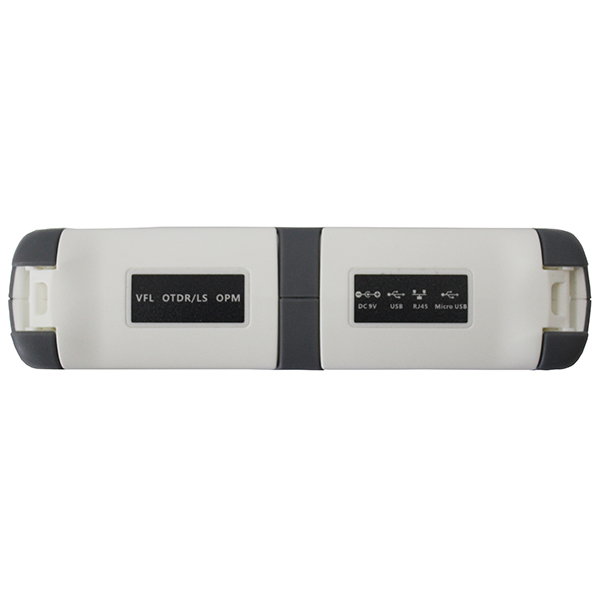

- FC/SC/ST connectors interchangeable
- Automatic and manual test function
- OTDR Viewer software for data analysis
- Cover plate type tempered glass panel, no worry about screen scratch
- Sink type optical port design for better protection
- Support U disk, SD card and Micro USB export data protection
Applications:
- CATV network testing
- Access network testing
- LAN network testing
- Lab and Factory testing
- FTTA troubleshooting
Multi-functions:
- OTDR
- Optical Power Meter (OPM)
- Visual Fault Locator (VFL): Visual Fault Locator uses red laser of 650nm to locate broken fiber points and test fiber continuity.
- Network Cable Test
: It can check RJ45 Ethernet Cable Sequence.
- Fiber Inspection: Fiber Inspection is used to check fiber optic connector endface. The inspection probe is sold separately.
- Event Map: Event Map is similar to EXFO’s iOLM function, which can display events in user-friendly icons.
- Report Print: PC software helps print out OTDR test reports.
- LED light
Specifications:
1. OTDR

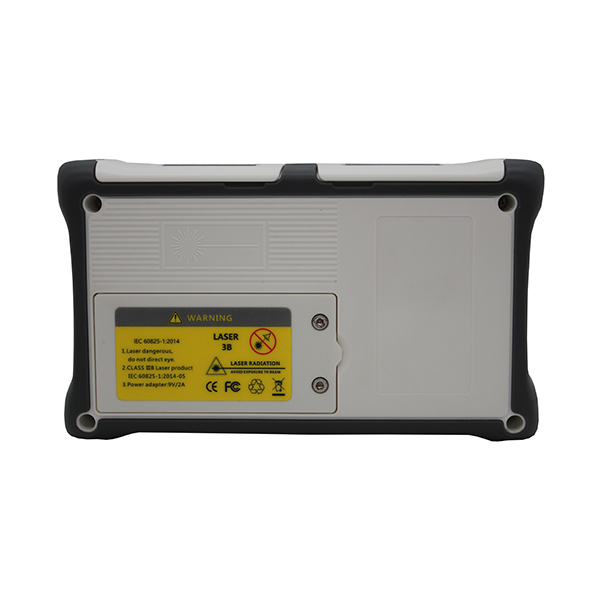

| Model | INF420-MD26 |
| Wavelength | 850/1300nm |
| Dynamic Range | 22/26dB |
| Fiber Type | MMF |
| Event Dead Zone | 3m |
| Attenuation Dead Zone | 10m |
| Measurement Range | 100m, 500m, 2km, 5km, 10km, 20km, 40km, 60km, 100km |
| Measurement Pulse Width | 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1us, 2us |
| Ranging Accuracy | ±(0.5+Range×3×10-5+sampling resolution) (Excluding refractive index error) |
| Sampling Resolution | Minimum 0.2m |
| Samping Points | 64,000 points |
| Linearity | ≤0.05dB/dB |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| Range resolution | 0.01m |
| Refracton Setting | 1.2000~1.5999, 0.0001 step |
| File Format | SOR standard file format |
| Laser Safety Level | Class II |

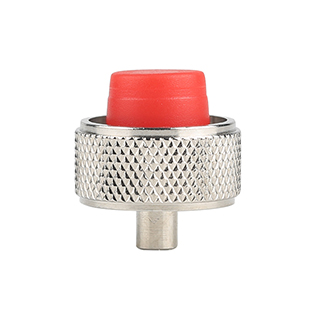

| Adapter | FC/UPC (Interchangeable SC/UPC adapter) |
| Language | English, Spanish, Russian, French, Portuguese, Korean, Italian, Vietnamese |
2. Optical Power Meter
| Wavelength Range | 800~1700nm |
| Calibrated Wavelength | 850/1300/1310/1490/1550/1625/1650nm |
| Test Range | Type A: -70~+10dBm (default); Type B: -50~+26dBm (optional) |
| Resolution | 0.01dB |
| Uncertainty | ±5% |
| Connector | Universal 2.5mm (FC/SC/ST) |
3. Visual Fault Locator
| Wavelength | 650nm |
| Power | ≥10mW |
| Mode | CW/2Hz |
| Connector | Universal 2.5mm (FC/SC/ST) |

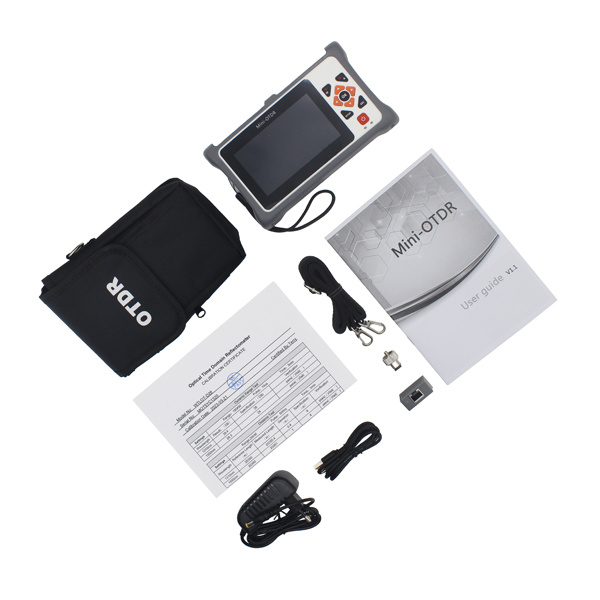

Standard Accessories:
| Item | Name | Quantity |
| 1 | OTDR with FC adapter for OTDR/LS port, Lithium battery and Simulation analysis software | 1pc |
| 2 | AC/DC power adapter | 1pc |
| 3 | Data line | 1pc |

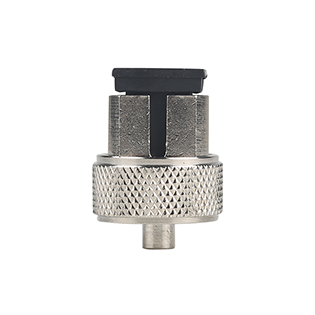

| 4 | SC Adapter for OTDR port | 1pc |
| 5 | User manual | 1pc |
| 6 | Calibration Certificate | 1pc |
| 7 | Soft Bag with shoulder strap | 1pc |
| 8 | Remote module for Network Cable Test | 1pc |
| 9 | Wrist belt | 1pc |
Optional Accessories:
| Item | Name | Quantity |

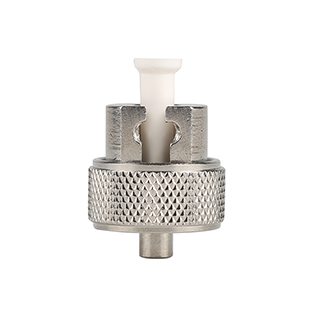

| 1 | LC Adapter for OTDR port | 1pc |

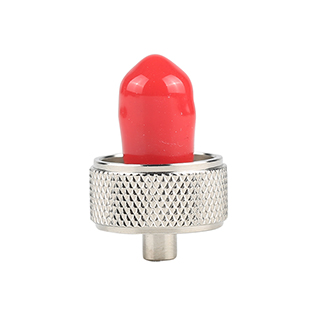

| 2 | ST Adapter for OTDR port | 1pc |
Ordering Information:
| Model | INF420 |
| Wavelength and Dynamic Range | MD26: 850/1300nm, 22/26dB |
| Power Meter | A: -70~+10dBm (default); B: -50~+26dBm |
| Connector | None: FC/UPC and SC/UPC (default) |
